Projectile Motion and Free Fall Hills Worksheet

ANSWERS

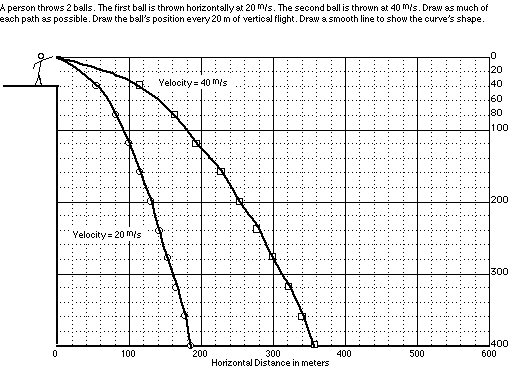

Below is a set of answers for 4 velocities.

Vertical distance down (meters)	Horizontal position for the ball with an initial velocity of 10 m/s	Horizontal position for the ball with an initial velocity of 20 m/s	Horizontal position for the ball with an initial velocity of 30 m/s	Horizontal position for the ball with an initial velocity of 40 m/s
0	0	0	0	0
40	28.6	57.1	102.4	136.6
80	40.4	80.8	121.8	162.4
120	49.5	99.0	134.8	179.8
160	57.1	114.3	144.9	193.2
200	63.9	127.8	153.2	204.3
240	70.0	140.0	160.3	213.8
280	75.6	151.2	166.6	222.2
320	80.8	161.6	172.3	229.7
360	85.7	171.4	177.4	236.6
400	90.4	180.7	182.2	242.9
